Jointech JT301A 4G Smart Vehicle Door Sensor Monitoring Tracker Container Tracking Device Remote Control

Minimum Order Quantity : 1 Unit Preis : USD 37-49 / Unit
Packaging Details : Cartons Delivery Time : 5-8 Days
Payment Terms : T/T, Western Union, L/C Supply Ability : 100000 Units per Month
Place of Origin: China Markenname: Jointech
Zertifizierung: CE, ROHS, FCC Model Number: JT301 Asset Tracker

Detailinformationen

Feature: Real-time GPS Positioning, GPRS Remote Tracking Application: Monitoring Of Containers, Vans, Warehouse Doors
Positioning Mode: Real Time Position Tracking (GPS+LBS)+Flash Memory For Blind Spot Monitoring Mode: Real-time Monitoring Of Location, Door Opening
Support: Alerts For Cargo Tampering, Anti-theft Design, Temperature Sensors Network: GSM (2G) / 4G/ 3G
Battery: Rechargeable Battery, 3 Month Battery Dimension/Weight: 830 X 720 X 21mm / 470g
Protection Grade And Certificate: IP50 Waterproof And CE, FCC, Explosion-proof, RoHS
Hervorheben:

Vehicle Door Sensor Monitoring Tracker

,

4G Smart Container Tracking Device

,

Remote Control Container Tracking Device

Produkt-Beschreibung

Jointech JT301A 4G Smart Vehicle Door Sensor Monitoring Tracker Container Tracking Device Remote Control

Product Description

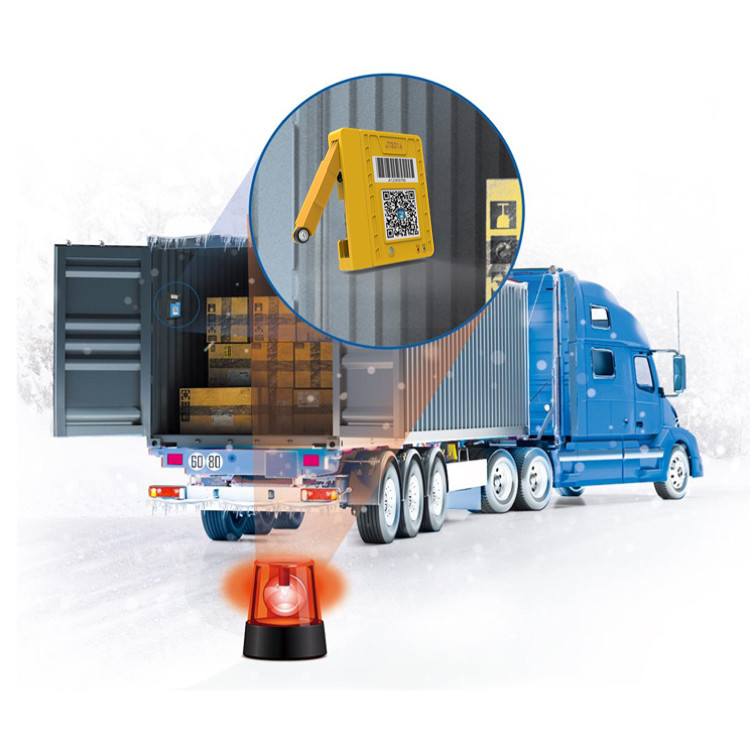

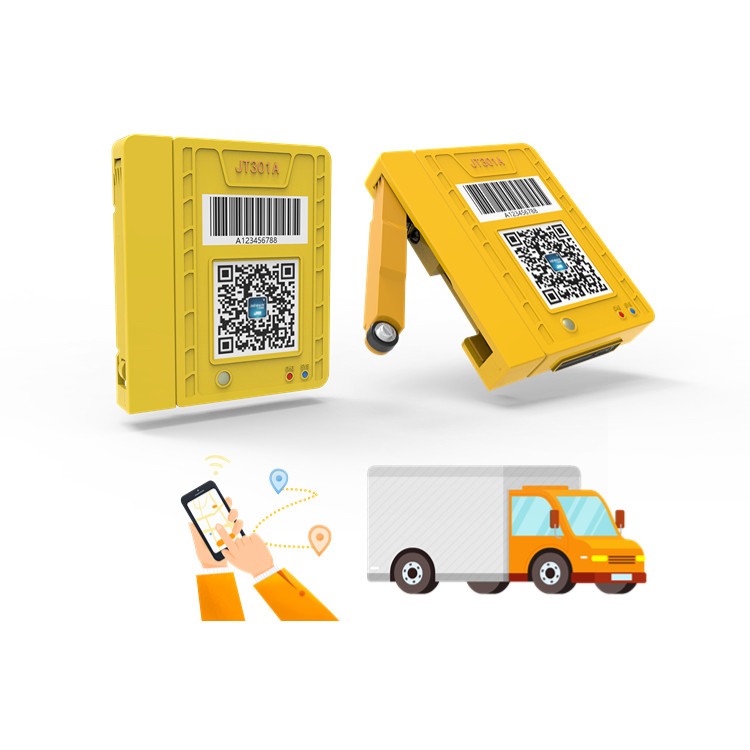

JT301A , an asset GPS tracker with a door sensor is a device that combines GPS technology with a door sensor to monitor the location and status of an asset in real-time. The door sensor is typically used to detect whether the door of the asset is open or closed, providing additional security and monitoring capabilities.



An asset GPS tracker with a door sensor typically has a built-in GPS receiver that can communicate with satellites to determine its precise location. It also has a cellular modem that allows it to transmit location and door status data to a remote server, where it can be accessed by authorized users through a web-based platform or mobile app.

Your inquiry is welcome.


Main Features

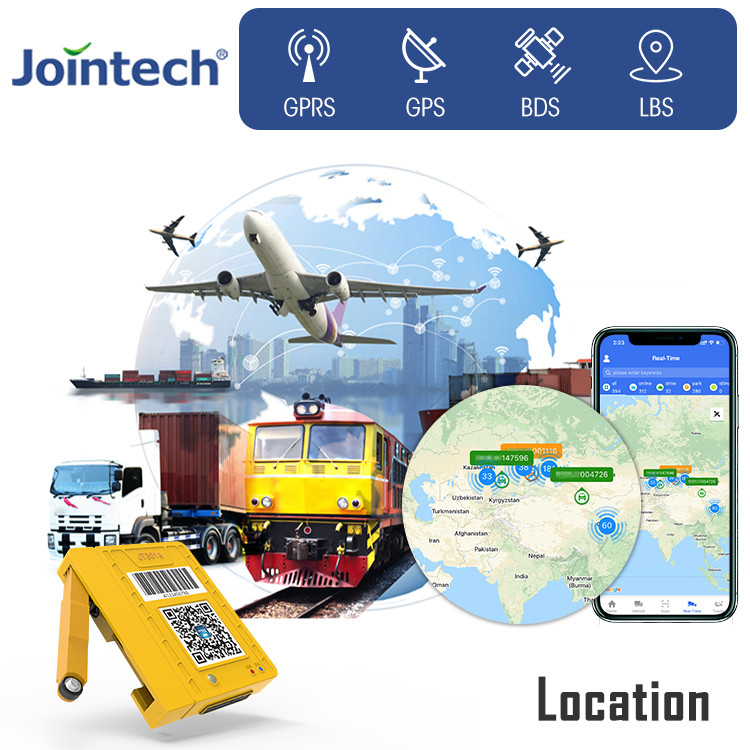

* Positioning and tracking.

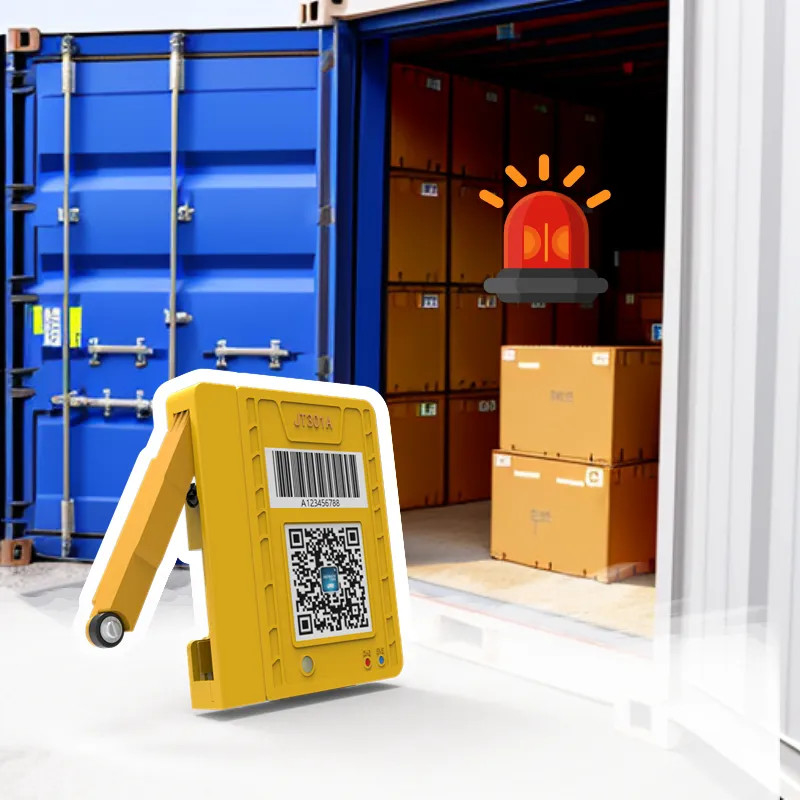

* Door Status: Detection of the opening/closing of the car door.

* OTA upgrade: The device can be remotely upgraded via FTP or Bluetooth channels

* Remote configuration: Device parameters can be configured via SMS, TCP, and Bluetooth

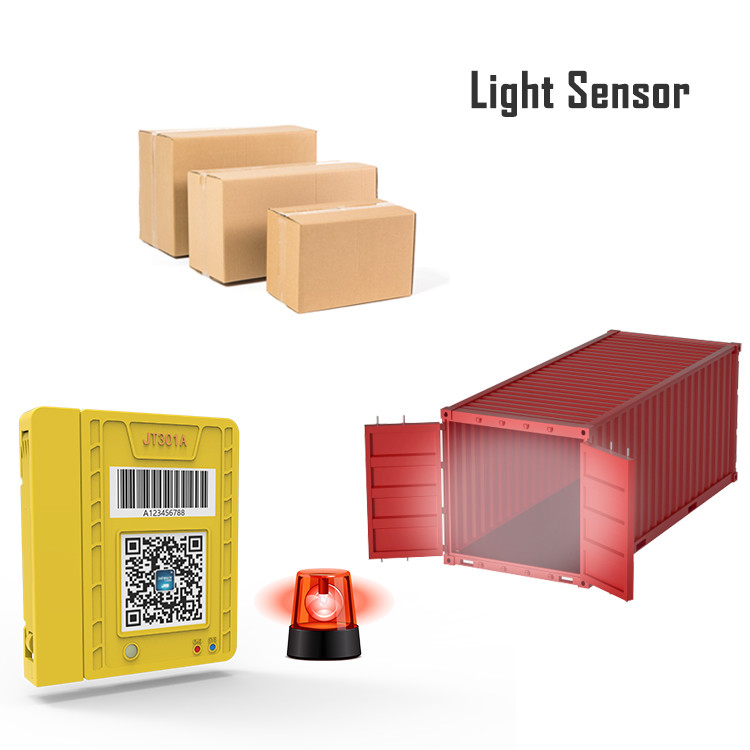

* Illuminance sensor: light sensitivity detection and alarm function.




Dimension (L x W x H)
83mm*56mm*12.5mm (switch sensor not included)
Host weight
60g (switch sensor not included))
Shell material
ABS+PC engineering plastic
Built-in battery
Rechargeable lithium battery 3.7V /1300mAh
Working temperature
-20℃ ~ 60℃
Storage temperature
-40℃ ~ 60℃
Relative humidity
5%~95%
Waterproof and dustproof grade
IP50
Data communication
The default data upload network is 4G CAT1, and the default support band are:
LTE-FDD: B1/B3/B5/B7/B8/B20/B28
LTE-TDD: B38/B40/B41
GSM: 850/900/1800/1900 MHz
Door status detection
The pressure bar mechanical pulley detects the door opening/closing status, and the pulley telescopic length of the detection
sensor is 20mm.
Charging interface
Micro USB
Communication mode
TCP,SMS
SIM card
Micro-SIM card
Bluetooth wireless communication
Bluetooth 4.2 or above, open effective communication distance > 10M
luminous flux
Bluetooth 4.2 or above, open effective communication distance > 10M

Jointech JT301A 4G Smart Vehicle Door Sensor Monitoring Tracker Container Tracking Device Remote Control 0

Jointech JT301A 4G Smart Vehicle Door Sensor Monitoring Tracker Container Tracking Device Remote Control 1

Jointech JT301A 4G Smart Vehicle Door Sensor Monitoring Tracker Container Tracking Device Remote Control 2

Jointech JT301A 4G Smart Vehicle Door Sensor Monitoring Tracker Container Tracking Device Remote Control 3Jointech JT301A 4G Smart Vehicle Door Sensor Monitoring Tracker Container Tracking Device Remote Control 4

Jointech JT301A 4G Smart Vehicle Door Sensor Monitoring Tracker Container Tracking Device Remote Control 5

Jointech JT301A 4G Smart Vehicle Door Sensor Monitoring Tracker Container Tracking Device Remote Control 6Jointech JT301A 4G Smart Vehicle Door Sensor Monitoring Tracker Container Tracking Device Remote Control 7Jointech JT301A 4G Smart Vehicle Door Sensor Monitoring Tracker Container Tracking Device Remote Control 8





Jointech JT301A 4G Smart Vehicle Door Sensor Monitoring Tracker Container Tracking Device Remote Control 9

Jointech JT301A 4G Smart Vehicle Door Sensor Monitoring Tracker Container Tracking Device Remote Control 10

Jointech JT301A 4G Smart Vehicle Door Sensor Monitoring Tracker Container Tracking Device Remote Control 11

Jointech JT301A 4G Smart Vehicle Door Sensor Monitoring Tracker Container Tracking Device Remote Control 12

Exhibition

Jointech JT301A 4G Smart Vehicle Door Sensor Monitoring Tracker Container Tracking Device Remote Control 13

Jointech JT301A 4G Smart Vehicle Door Sensor Monitoring Tracker Container Tracking Device Remote Control 14



Jointech JT301A 4G Smart Vehicle Door Sensor Monitoring Tracker Container Tracking Device Remote Control 15

Jointech JT301A 4G Smart Vehicle Door Sensor Monitoring Tracker Container Tracking Device Remote Control 16

Shipping & Packaging



Jointech JT301A 4G Smart Vehicle Door Sensor Monitoring Tracker Container Tracking Device Remote Control 17

Our clients & Partners

Jointech JT301A 4G Smart Vehicle Door Sensor Monitoring Tracker Container Tracking Device Remote Control 18

Jointech JT301A 4G Smart Vehicle Door Sensor Monitoring Tracker Container Tracking Device Remote Control 19

Jointech JT301A 4G Smart Vehicle Door Sensor Monitoring Tracker Container Tracking Device Remote Control 20

Jointech JT301A 4G Smart Vehicle Door Sensor Monitoring Tracker Container Tracking Device Remote Control 21

Q1: Do you have your own factory?
A1: Yes, we are a manufacturer with 18 years of experience in providing mobile asset monitoring and management solutions.

Q2:Why choose us?
A2: Our company is a leader in the field of mobile asset monitoring in China, our products and services have covered more than 80 countries and regions around the world and enjoy high brand awareness and reputation in America, Africa, Asia and Europe.

Q3: Do you have your own tracking platform?
A3: Yes, we can provide not just web based tracking software, but also IOS/Android APP.

Q4: Do you provide customized hardware and software?
A4: Yes, we can provide not just customized hardware, but also software functionalities.

Q5: What is the MOQ?
A5: MOQ will be 1-2pcs.

Q6: What's your delivery time?
A6: For samples, 2-4 days, bulk order, 7-15 days generally.

Q7: How can I get your price list?
A7: Please contact us, we will email you the quotation.

Q8: Can we have our logo or company name to be printed on your products or the package?
A8: Yes, of course.

Q9: What is the Warranty period of your products?
A:9: 12 months.

Q10: If the products have quality problems, what after-sale service I can get?
A10: Online chat service, remote technology support and platform service.
